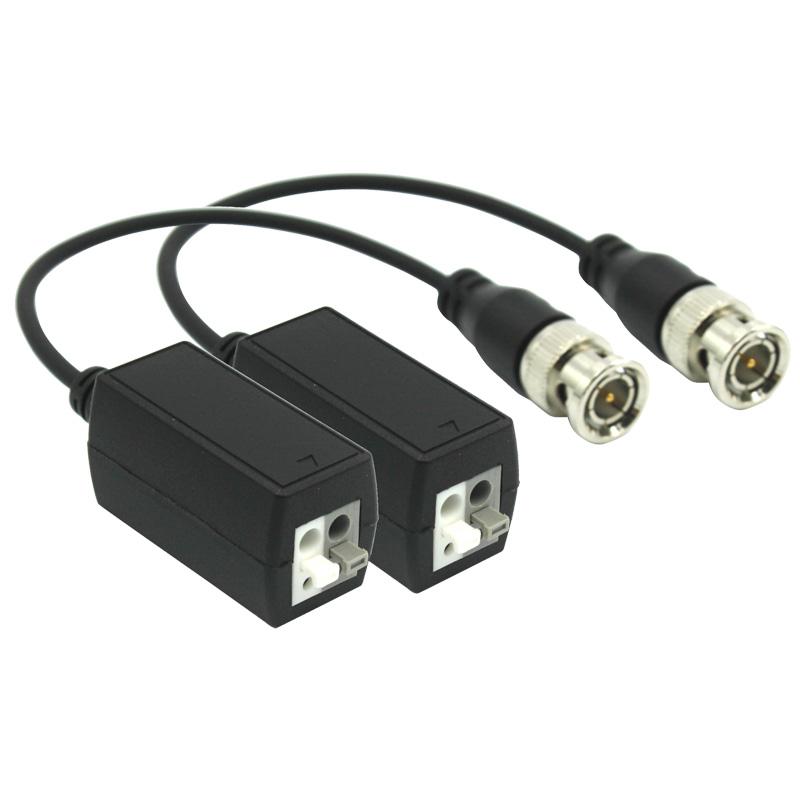

VIP* Vision Passive HDCVI / Analogue Balun Pair With Video Transmission Range Up To 250M (At 1080P) Or 400M (At 720P)

VIP* Vision Passive HDCVI / Analogue Balun Pair With Video Transmission Range Up To 250M (At 1080P) Or 400M (At 720P)

by VIP Vision
Please login to view price
SKU VSBALHDP
Please login to Add to Cart

Notify me when back in stock

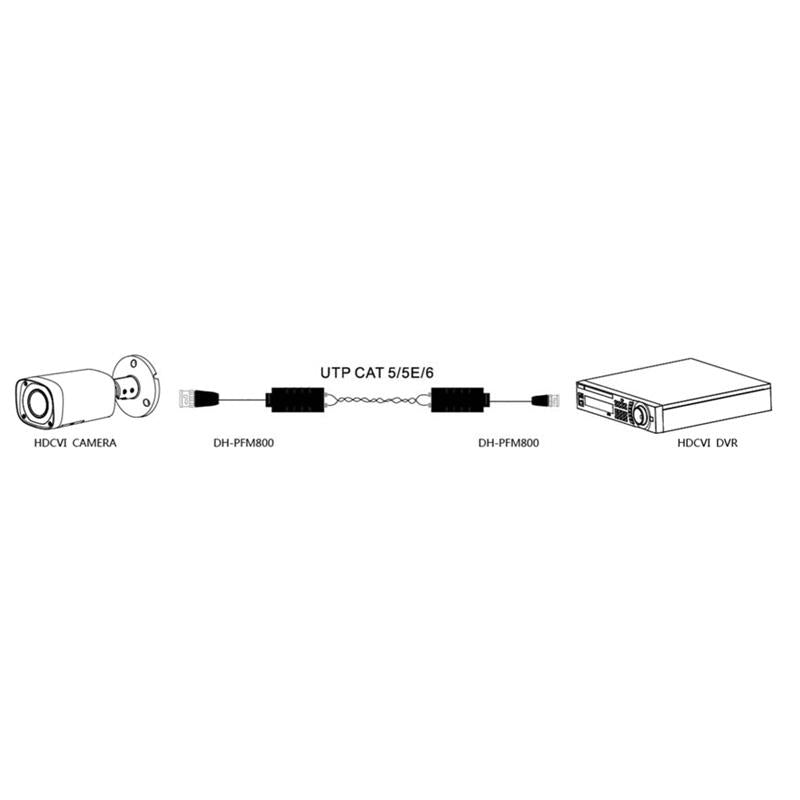

The VSBALHDP allows installer to minimise the cost of wiring for surveillance camera installations by using network cabling such as CAT6 or CAT5e instead of Coax Cable. Video transmission range from up to 100m (at 4K Ultra HD), 250m (at 1080p), 200m (at 4.0MP) or 400m (at 720p).
General
Resolution
720p/1080p/4.0MP/4K
Compatible Format
HDCVI
Category Type
UTP CAT 5E/6 (R＜10Ω/100M)
ESD
1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per:IEC61000-4-2
MTBF
＞10000H
BNC Male
75 ohms
Anti-Interference
＞60db
UTP Cable
100 ohms
Connectors
Coaxial Cable Connector
2KV(common-code) Per:IEC61000-4-5
Coaxial Video Connector
BNC-M
Twisted-pair Video Connector
Push-terminal
UTP Cable Connector
2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Transmission
Transmission Distance
720p: 400M (max) , 1080p: 250M (max), 4.0MP: 200M (max), 4K: 100M (max)
Transmission Signal
1 channel
Environment
Operating Temperature
-10~55℃
Operating Humidity
0~95%(non-condensing)
Storage Temperature
-20~70℃
Dimensions
53mm*20mm*17mm (L*W*H)
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
120 mm
Depth
30 mm
Weight
0.06 kg
Please Contact Zankap

VSBALHDP Product Brochure (PDF) 0.09 MB

CE/ RCM Certificate

RoHS Certificate
