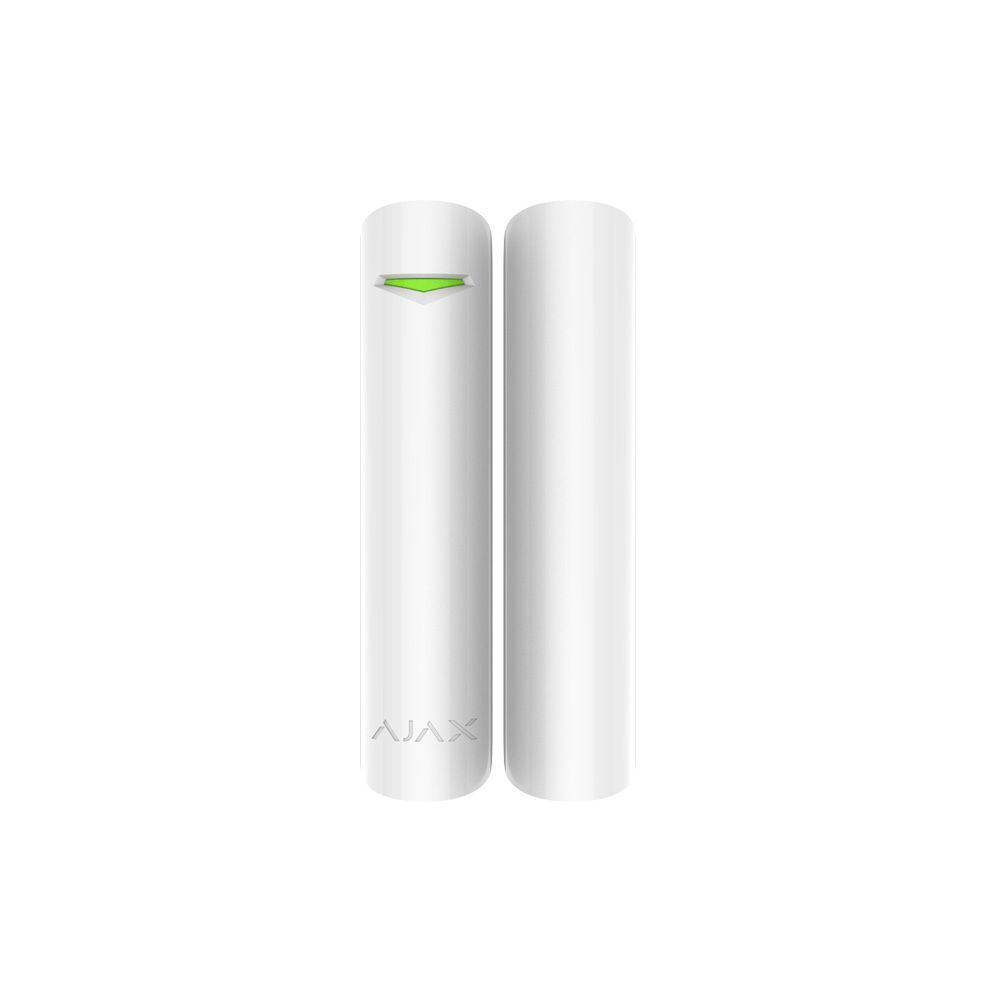

2 Way Wireless Door Or Window Reed Switch With Universal Input

  • Authentication to prevent forgery
  • Jamming detection and communication channels encryption
  • Tampering alarm
  • Operates up to 7 years without battery replacement
  • External contact is available for connecting third-party detectors
  • Includes magnets of various sizes for installation on narrow frames and door frames


SensorSealed contact reed relay
Sensor resource2,000,000 openings
Detector actuation threshold1 cm (small magnet)

2 cm (big magnet)
Tamper protectionYes
Socket for connecting wire detectorsYes, NC
Radio communication protocolJeweller

Learn more
Radio frequency band866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
CompatibilityOperates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
Maximum RF output powerUp to 20 mW
ModulationGFSK
Radio signal rangeUp to 1,200 m (in an open space)

Learn more
Power supply1 battery CR123A, 3 V
Battery lifeUp to 7 years
Installation methodIndoors
Protection classIP50
Operating temperature rangeFrom -10°С to +40°С
Operating humidityUp to 75%
DimensionsØ 20 × 90 mm
Weight29 g
Service life10 years
CertificationSecurity Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-6, EN 50131-5-3


  •
