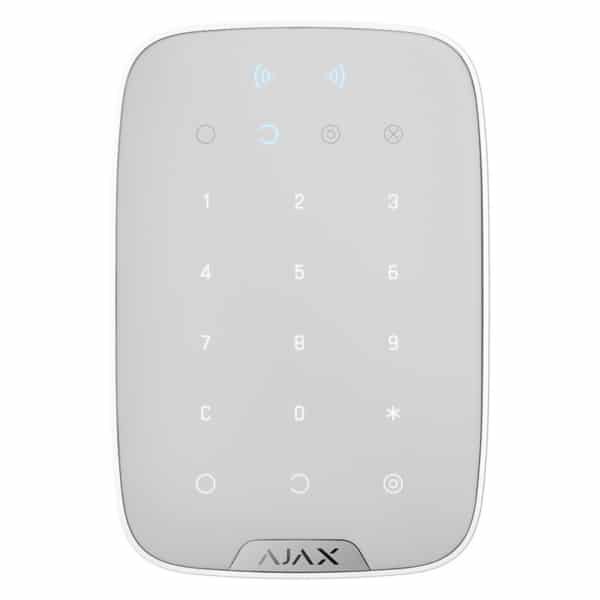

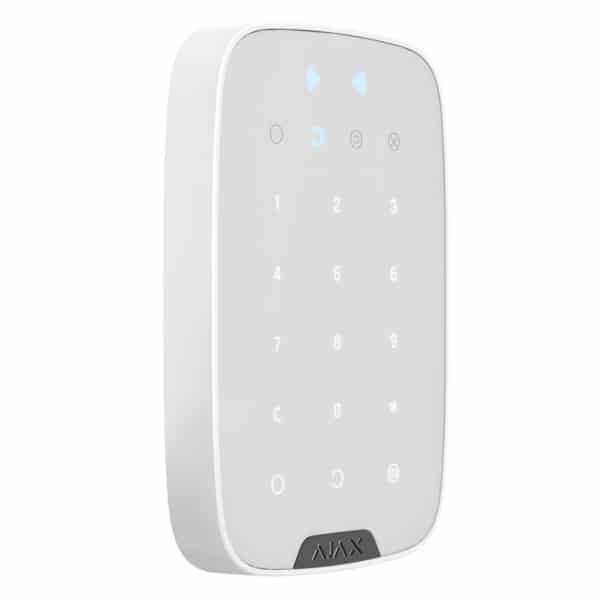

White Wireless touch keypad is used to arm/disarm an Ajax security system

  • Supports up to 99 keypad access codes
  • A unique name and ID binding to identify the user
  • Authentication to prevent forgery
  • Jamming detection and communication channels encryption
  • Tampering alarm
  • KeyPad supports code types as follows:

    • Keypad Code — general code that is set up for the keypad. When used, all events are delivered to Ajax apps on behalf of the keypad.
    • User Code — personal code that is set up for users connected to the hub. When used, all events are delivered to Ajax apps on behalf of the user.
    • Keypad Access Code — set up for a person who is not registered in the system. When used, events are delivered to Ajax apps with a name associated with this code.




Sensor typeCapacitive
Anti-tamper switchYes
Protection against guessing a codeYes
Radio communication protocolJeweller
Learn more
Radio frequency band866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
CompatibilityOperates only with all Ajax hubs, and radio signal range extenders
Maximum RF output powerUp to 20 mW
Modulation of the radio signalGFSK
Radio signal rangeUp to 1,700 m (if there are no obstacles)
Learn more
Power supply4 × AAA batteries
Power supply voltage3 V (batteries are installed in pairs)
Battery lifeUp to 2 years
Installation methodIndoors
Operating temperature rangeFrom -10°C to +40°C
Operating humidityUp to 75%
Overall dimensions150 × 103 × 14 mm
Weight197 g
Service life10 years
CertificationSecurity Grade 2,
Environmental Class II in conformity
with the requirements of
EN 50131-1, EN 50131-3, EN 50131-5-3
