Dahua* 2 Wire Villa Network Controller, 2 Lan Port, 48VDC, (Up To Six 2 Wire Devices)

Name: Dahua* 2 Wire Villa Network Controller, 2 Lan Port, 48VDC, (Up To Six 2 Wire Devices)
Brand: Dahua
SKU: VTNS2003B-2
Availability: InStock

by Dahua

Please login to view price

SKU VTNS2003B-2

Please login to Add to Cart

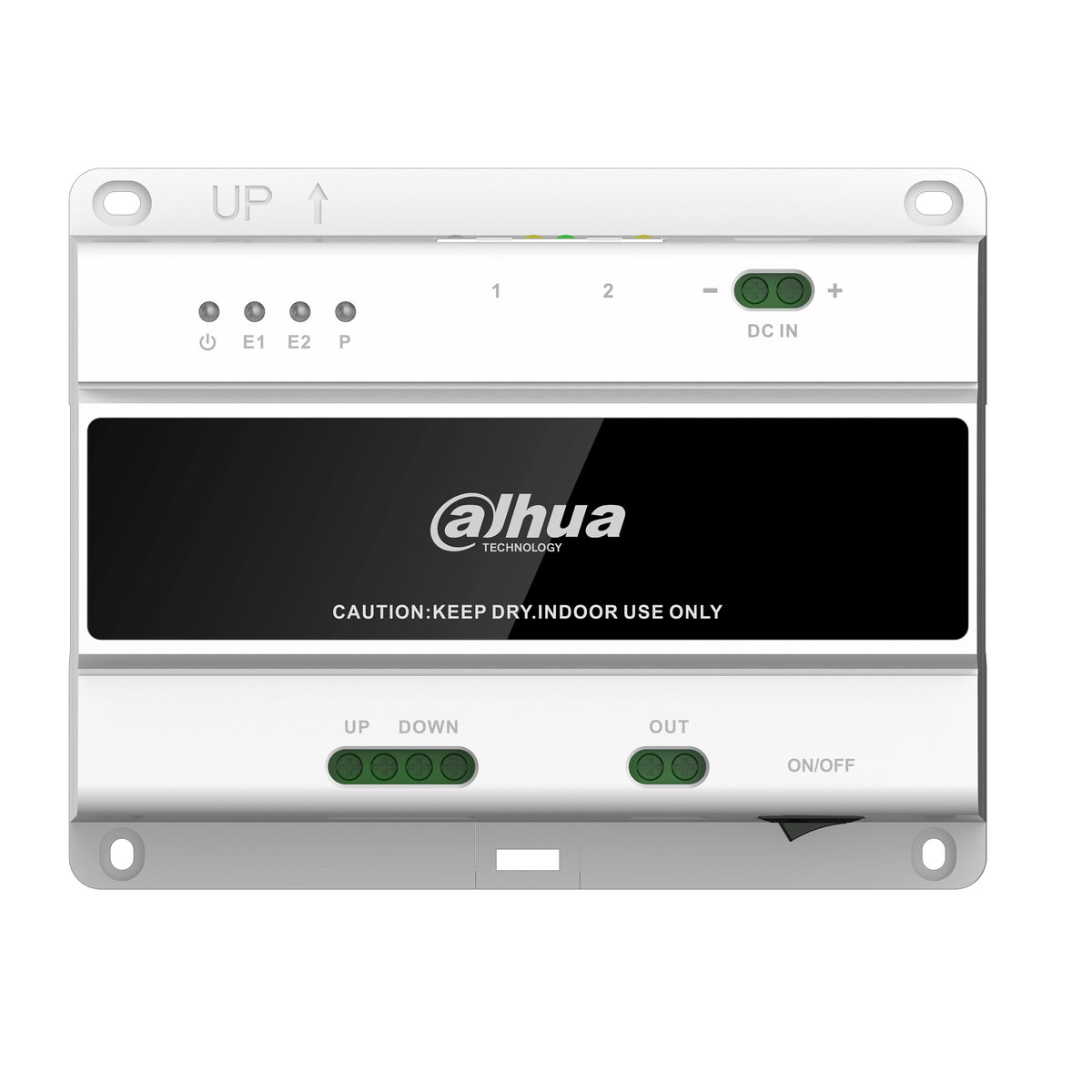

Dahua 2-Wire Villa Network Controller Switch

Supports 10-level cascade through the 2-wire port
Recommended connection, up to 6 2-wire devices
Supports connecting through RJ45 port

Basic

Status Indicator Light

Communication Mode

2-wire

Cascade Ability

Port

port

Two 2-wire ports for cascade

port

Two RJ45 ports, 10 Mbps/100 Mbps Ethernet

port

One 2-wire device port

General

Casing

PC + ABS

Appearance colour

White

Power Supply

DC 48V, 1A–3A

Power Adapter

Optional

Installation

Guide rail mount

Certifications

CE; FCC; UL

Accessory

Power converter cable

Product Dimensions

131.1 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57")

Operating Temperature

–10°C to +55°C (14°F to 131°F)

Operating Humidity

10%–95% (RH, non-condensing)

Operating Altitude

0-3000 m

Power Consumption

≤ 15W (KIT)

Net Weight

0.25 kg (0.55lb)

Gross Weight

0.39 kg (0.86 lb)
