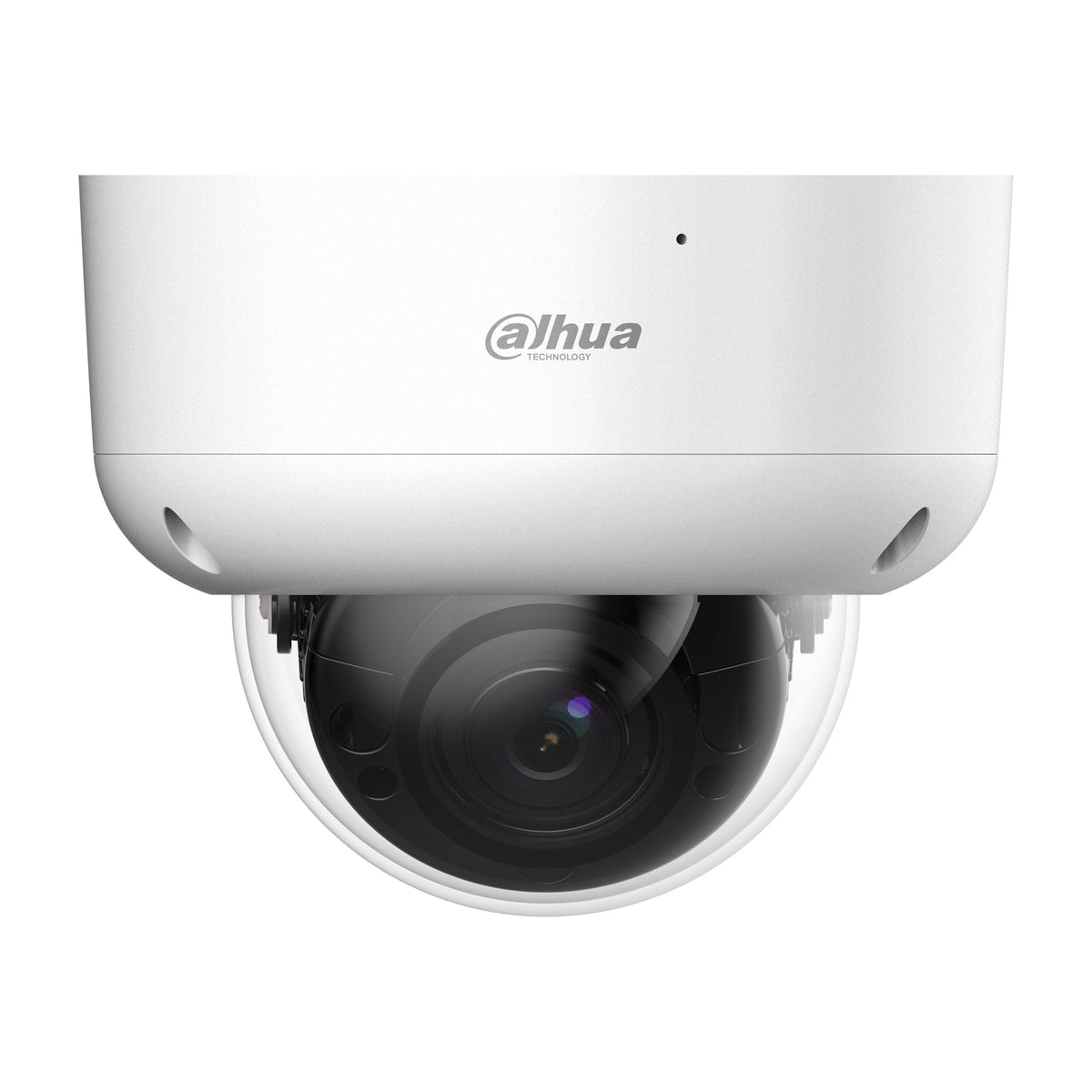

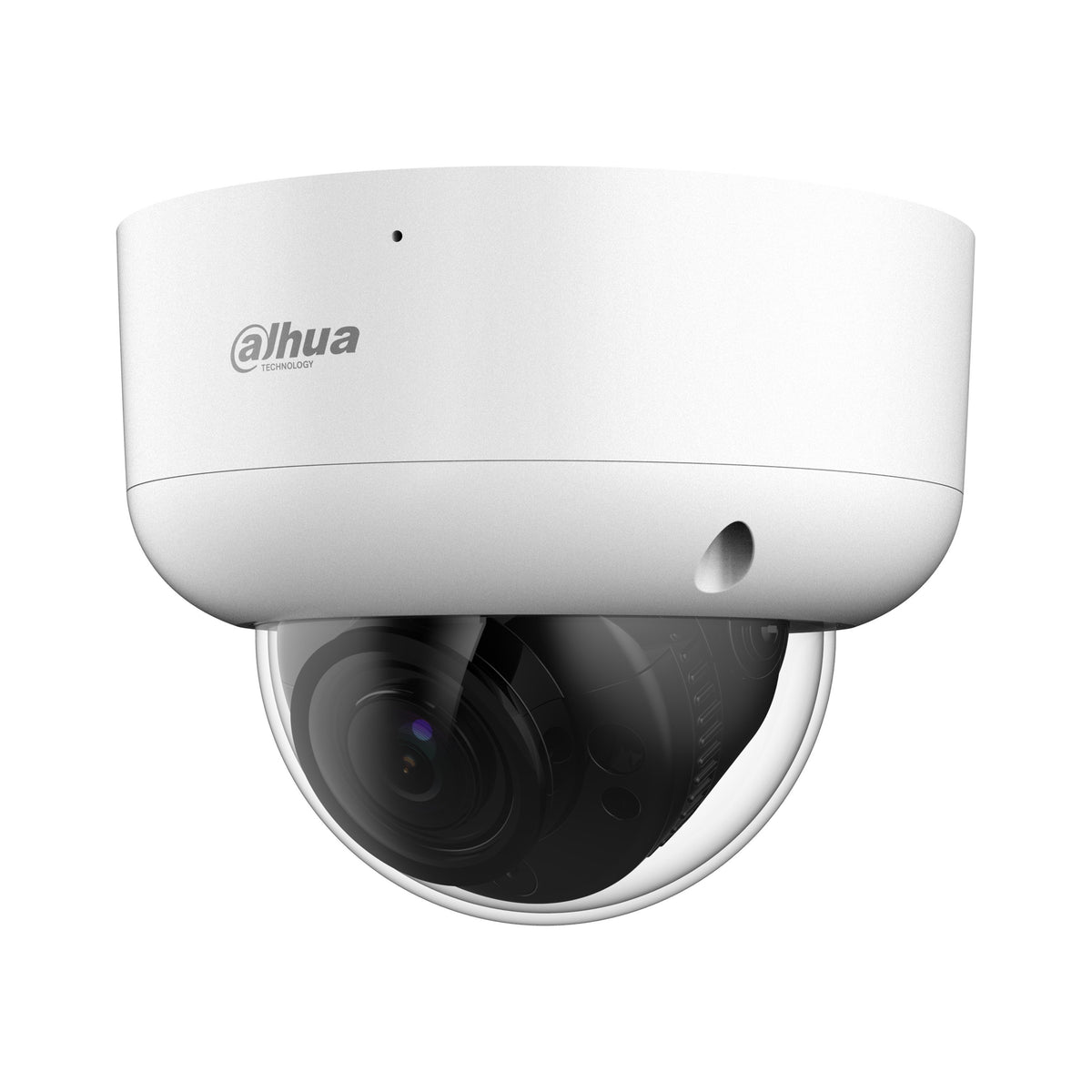

Dahua 2MP HDCVI Pro Series Motorised Vandal Dome Camera, Starlight, 2.7-13.5mm Lens, 130dB WDR, 60m IR, 12VDC/AC24V, IP67, IK10, (Junction Box: PFA137, Wall Mount: PFB203W)

Camera

Image Sensor

2MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.5, 30 IRE, 0Lux IR on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto

Illuminator Number

3 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–80°

Rotation: 0°–355°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm-13.5mm

Max. Aperture

F1.5

Field of View

Diagonal: 131°~35°

Horizontal: 108°~30°

Vertical: 56°~17°

Iris Type

Fixed

Close Focus Distance

0.8 m (2.6 ft )

DORI Distance

2.7 mm: D: 44.1 m (144.7 ft); O: 17.6 m (57.7 ft); R: 8.8 m (28.9 ft); I: 4.4 m (14.4 ft)

13.5 mm: D: 144.8 m (475.1 ft); O: 57.9 m (190 ft); R: 28.9 m (94.8 ft); I: 14.8 m (48.6 ft)

Video

Frame Rate

CVI:

PAL: 1080p@25fps;

NTSC: 1080p@30fps;

AHD:

PAL: 1080p@25fps;

NTSC: 1080p@30fps;

TVI:

PAL: 1080p@25fps;

NTSC: 1080p@30fps;

CVBS:

PAL: 960 × 576H;

NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/WDR/HLC

WDR

130 dB

White Balance

Auto/Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in mic

Power

Power Supply

DC12V±10%; AC24V±25%

Power Consumption

Max 9.9W (12V DC, IR on)

Environment

Operating Temperature

–30 °C~+60 °C (-22 °F to 140 °F); ﹤ 95% (non-condensation)

Storage Temperature

–30 °C~+60 °C (-22 °F to 140 °F); ﹤ 95% (non-condensation)

Protection Grade

IP67; IK10

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ126 mm × 100 mm (φ5" × 3.9")

Net Weight

0.65 kg (1.4 lb)

Gross Weight

0.83 kg (1.8 lb)
