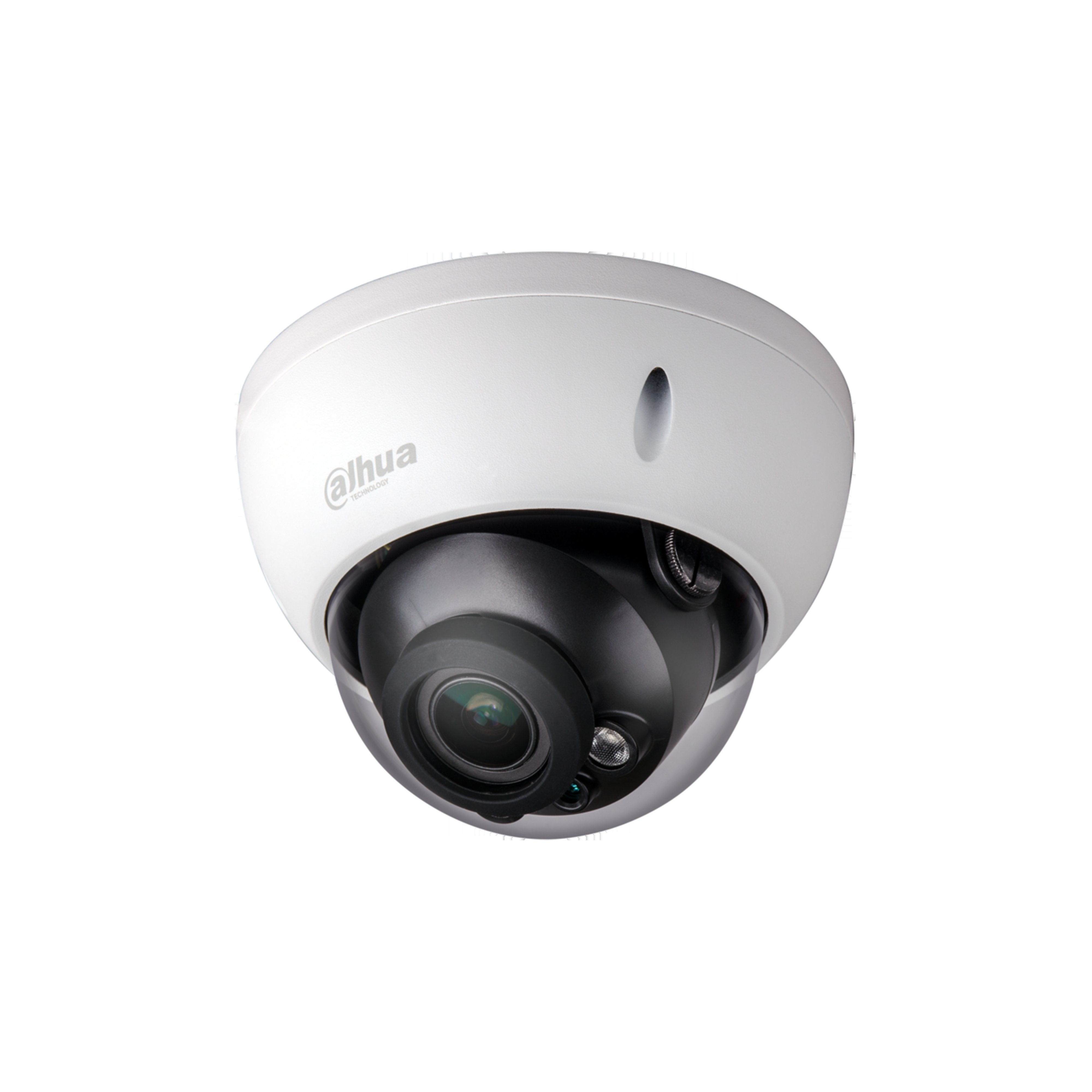

Dahua 5MP HDCVI Pro Series Motorised Vandal Dome Camera, Starlight, 2.7-13.5mm Lens, 120dB WDR, 30m IR, 12VDC, IP67, IK10, (Junction Box: PFA137, Wall Mount: PFB203W)

by Dahua
SKU HAC-HDBW2501RP-Z-27135

Notify me when back in stock

5MP Starlight HDCVI IR Dome Camera

* The parameters and datasheets below can only be applied to 2501-S2 series

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

  • Max 25 fps@5MP (16:9 video output)
  • Starlight, 120 dB true WDR, 3D NR
  • CVI/CVBS/AHD/TVI switchable
  • 2.7 mm–13.5 mm motorized lens
  • Max. IR length 30 m, Smart IR
  • IP67, IK10, 12V DC±30%

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6; 30IRE; 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.6

Field of View

Horizontal: 31.4°–113°

Vertical: 17.6°–58°

Diagonal: 36°–138°

Iris Type

Fixed iris

Close Focus Distance

0.8 m (2.6 ft)

DORI distance

Lens

Detect

Observe

Recognize

Identify

2.7mm

64.0 m

(210.0 ft)

25.6 m

(84.0 ft)

12.8 m

(42.0 ft)

6.4 m

(21.0 ft)

13.5mm

210.0 m

(689.0 ft)

84.0 m

(275.6 ft)

42.0 m

(137.8 ft)

21.0 m

(68.9 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440);

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/HLC-Pro/WDR

WDR

120 dB

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Illumination

Yes

Digital Zoom

4x

Defog

Electronic defog

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN623681:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12V DC ±30%

Power Consumption

Max. 6.6W (12V DC, IR on)

Environmental

Operating Temperature

–30°C to +60°C (–22°F to +140°F); < 95%

(non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); < 95%

(non-condensation)

Protection Grade

IP67; IK10

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ122 mm × 88.9 mm (φ4.8" × 3.5")

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.64 kg (1.40 lb)
