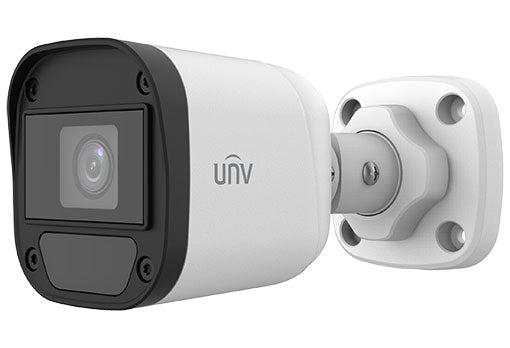

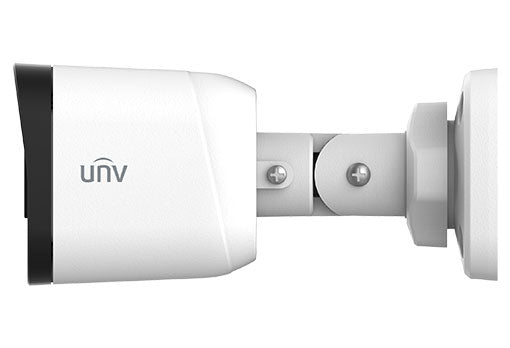

Uniview 5MP HDCVI IR Mini Bullet Camera, 2.8mm, DWDR, 20m IR, 12VDC, IP67 (Junction Box: TR-JB05-A-IN, Pole Mount: TR-UP06-B-IN)

by Uniview
SKU UAC-B115-F28

Notify me when back in stock

5MP HD Fixed IR Mini Bullet Analog Camera

  • 5MP high quality image
  • TVI/AHD/CVI/CVBS
  • IR-cut filter with auto switch (ICR)
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
ModelUAC-B115-F28
Sensor
Pixel5MP
Size1/2.7"
Minimum illumination0.02lux(F2.0, AGC ON)
0.00 lux (IR on)
Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 102.2°  V: 53.9°  D: 124.8°
Illuminator
IlluminatorOne IR illuminator
Illumination distance20m
Lifetime≥60,000 hours
Video
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame rateTVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC
Shutter timePAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode4 modes: Global (default), BLC, HLC, DWDR
Day/Night3 modes: Auto (default), Day, Night
Digital noise reduction2D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180° horizontal flip, 180° vertical flip.
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-30℃ to 60℃(-22℉ to 140℉)
Humidity≤95% (RH, non-condensing)
Surge protection4KV
Ingress protectionIP67
General
PowerDC12V (±25%), with reverse polarity protection and surge protection, Max 5.04W
Mount3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
Dimensions142mm*63mm*65mm (L*W*H)
MaterialPlastic
Weight135g(0.30lb)
CertificationCB, CE, FCC
