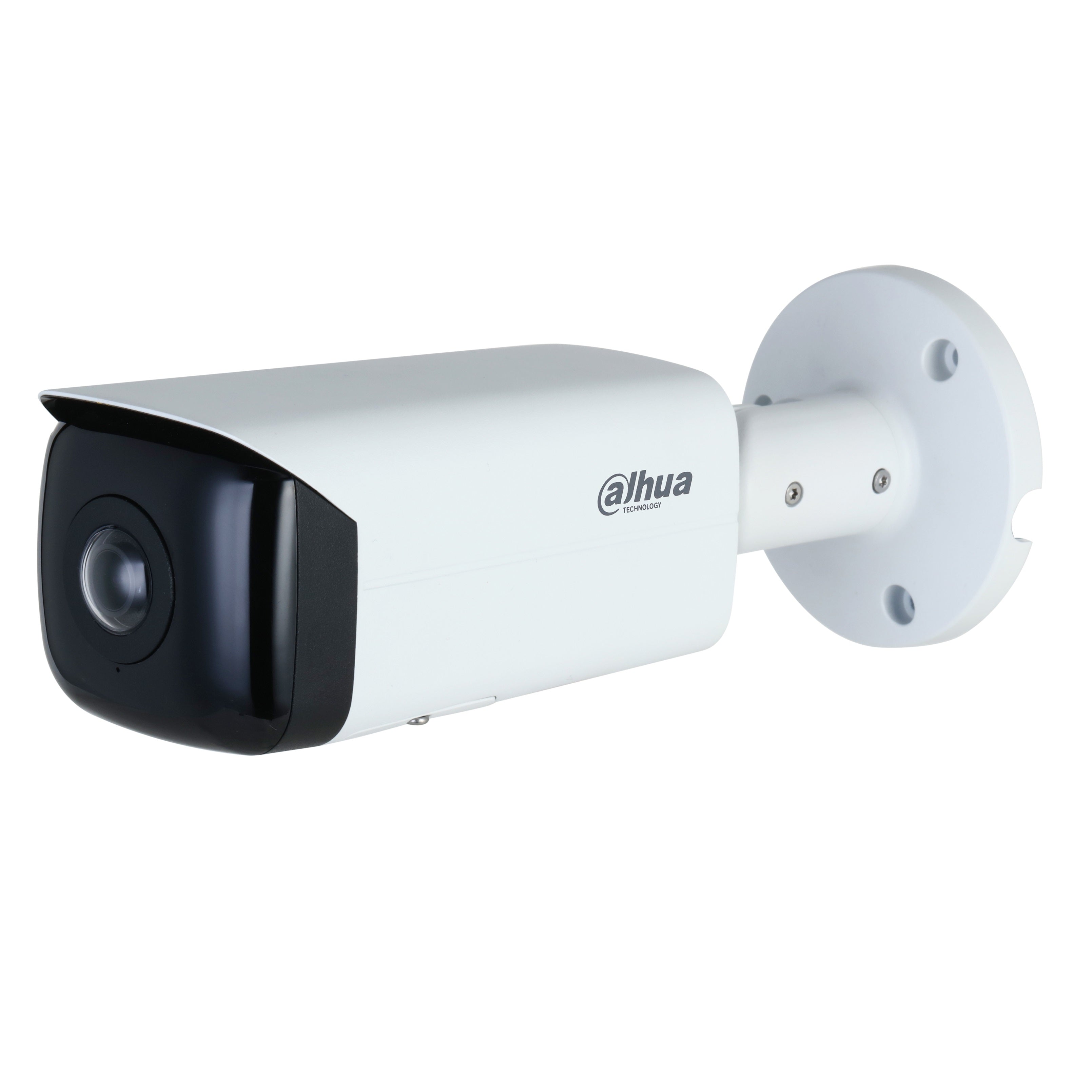

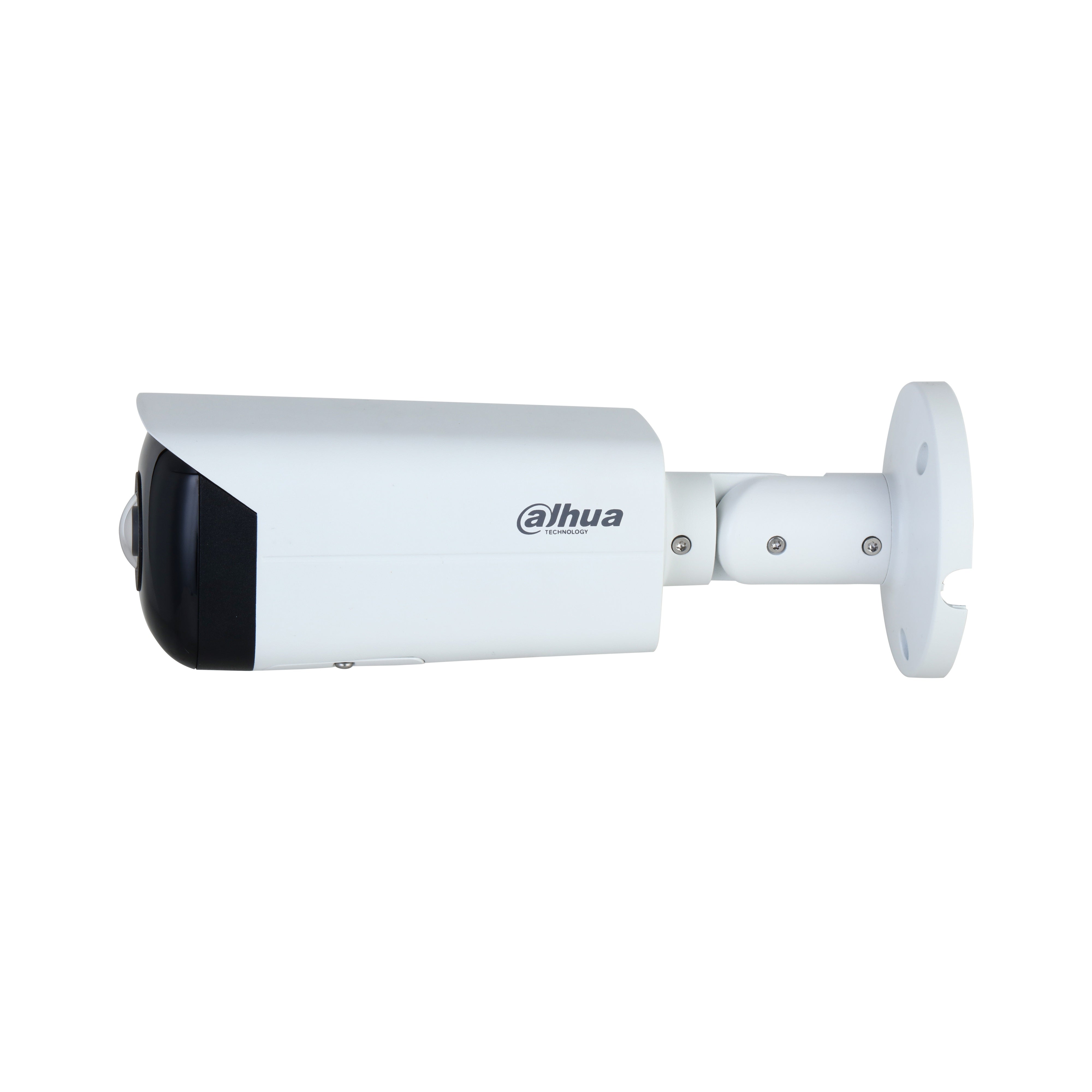

Dahua* 4MP IP WizSense AI Series IR 180 Degree Wide Angle Bullet Camera, SMD 4.0, Quick Pick, AI SSA, Perimeter, Starlight, 2.8mm, WDR, IR, POE / 12VDC, IP67, MicroSD, Built-in Mic (Pole Mount: PFA152-E, Junction Box: PFA130-E)

by Dahua
SKU IPC-HFW3466T-AS-P

Notify me when back in stock

4MP Wide Angle Fixed Bullet WizSense Network Camera

  • 4-MP 1/2.7" CMOS starlight-grade image sensor, low luminance, and high definition image
  • Outputs 4 MP (2688 × 1520) @25/30 fps , and supports max. 5 MP (2880 × 1620) @20 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, and the max. illumination distance is 20 m
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC
  • 12 VDC/PoE power supply
  • IP67 protection
  • EPTZ: Enlarge and track the targets of intelligent alarms
  • SMD 3.0

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color,30 IRE)
0.001 lux@F2.0 (B/W,30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

20 m (65.62 ft) (IR LED)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.1 mm

Max. Aperture

F2.0

Field of View

LDC is disabled:
Horizontal: 180°; Vertical: 78°; Diagonal: 180°
LDC is enabled (by default):
Horizontal: 170°; Vertical: 75°; Diagonal: 175°

Close Focus Distance

0.6 m (1.97 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.1 mm

52.0 m
(170.60 ft)

20.8 m
(68.24 ft)

10.4 m
(34.12 ft)

5.2 m
(17.06 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD 3.0

Less false alarm, longer detection distance

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2880 × 1620 @(1–20 fps )/2688 × 1520 @(1–25/30 fps )
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
third stream:1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080);
1.3M (1280 × 960); 720p(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF(352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps;
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD:EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15
, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3–5V DC

Alarm Output

1 channel out: 1,000 mA 30V DC/500mA 50V DC

Power

Power Supply

12 VDC/PoE

Power Consumption

Basic: 3.1 W (12 V DC); 5.3 W (PoE)
Max. (H.265+main stream/IR intensity+IR on): 4 W (12V DC); 6.5 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

249.3 mm × 90.7 mm × 90.4 mm (9.81" × 3.57" × 3.56") (L × W × H)

Net Weight

820 g (1.81 lb)

Gross Weight

1090 g (2.40 lb)
