Uniview* 2MP IP Deep Learning AI Series 33x Laser IR PTZ, Perimeter, Auto-Tracking, Face Capture, People Counting, LightHunter, 4.5-148.5mm, 120dB WDR, 500m Varifocal Laser IR, Five Streams, MicroSD, POE / 24VDC / 24VAC, BNC, IP66 (Standard Wall Mount: TR

Name: Uniview* 2MP IP Deep Learning AI Series 33x Laser IR PTZ, Perimeter, Auto-Tracking, Face Capture, People Counting, LightHunter, 4.5-148.5mm, 120dB WDR, 500m Varifocal Laser IR, Five Streams, MicroSD, POE / 24VDC / 24VAC, BNC, IP66 (Standard Wall Mount: TR
Brand: Uniview
SKU: IPC6652EL-X33-VF
Availability: InStock

by Uniview

Please login to view price

SKU IPC6652EL-X33-VF

Please login to Add to Cart

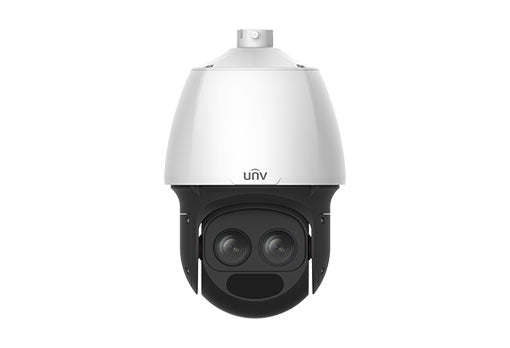

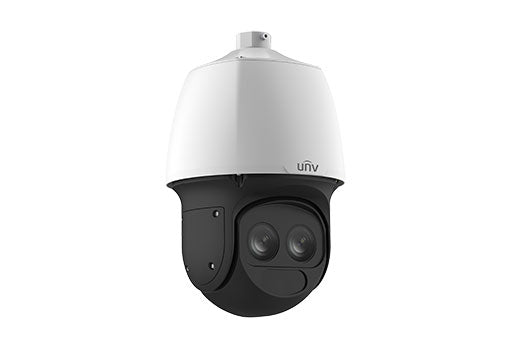

Uniview 2MP 33X lighthunter Laser IR Network PTZ Camera

High quality image with 2MP,1/2.8’’ CMOS sensor
1920*1080@60fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Five streams
33X Optical Zoom
Lighthunter technology ensures ultra-high image quality in low illumination environment
Vari-focal laser: 500m (1640ft) distance, proportional to optical zoom of camera module
AC 24V ±25%, DC 24V±25%, POE(PSE Required)
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP66 ingress protection

Camera
Sensor	1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB
S/N	>52dB
Lens
Lens type	4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	33
Iris	Auto; F1.5 ~ F4.0
Angle of View (H)	56.2° ~ 2.6°
Angle of View (V)	33.5° ~ 1.4°
Angle of View (O)	65.4° ~ 3.0°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	4.5	72.9(239.3ft)	29.2(95.7ft)	14.6(47.9ft)	7.3(23.9ft)
	148.5	2187.9(7178.3ft)	875.2(2871.3ft)	437.6(1435.7ft)	218.8(717.8ft)
Illuminator
Vari-focal Laser	Up to 500m(1640ft)
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 2MP (19201080), Max 60fps; Sub Stream: 2MP (19201080), Max 60fps; Third Stream: D1 (720576), Max 60fps Fourth Stream: D1 (720576), Max 60fps Fifth Stream: D1 (720*576), Max 60fps
Video Bit Rate	128 Kbps~16 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
U-code	Support
ROI	Up to 8 areas
Video stream	Five streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 blacks (Up to 4 blacks in the same picture)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EIS	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion detection, Audio detection, Tampering Alarm;
Auto tracking	Support later
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression
