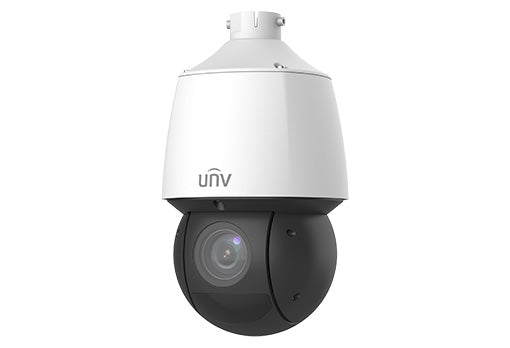

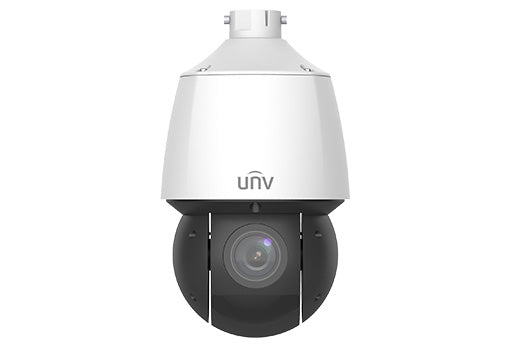

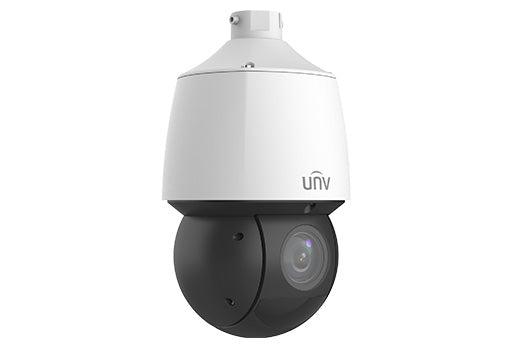

Uniview 4MP IP Deep Learning AI Series 25x IR Compact PTZ Camera, Perimeter, Auto-Tracking, Face Capture, People Counting, LightHunter, 4.8-120mm, 120dB WDR, 100m IR, MicroSD, POE or 12VDC, BNC, IP67, IK10 (Requiers Wall Mount: TR-WE45-IN)

by Uniview
SKU IPC6424SR-X25-VF

Notify me when back in stock

4MP 25x Lighthunter Network PTZ Dome Camera

  • High quality image with 4MP,1/2.8’’ CMOS sensor
  • 2688*1520@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 25X Optical Zoom
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • Smart IR, up to 100m (328ft) IR distance
  • DC 12V±25% or PoE+ (IEEE 802.3at)
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
  • IP67 ingress protection
  • IK10 vandal resistant

 IPC6424SR-X25-VF
Camera
Sensor1/2.8", 4.0 megapixel, progressive scan, CMOS
Min. IlluminationColour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDR120dB
S/N>56dB
Lens
Lens type4.8 ~ 120mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom25
IrisAuto; F1.5 ~ F3.8
Angle of View (H)52.20°~2.74°
Angle of View (V)30.81°~1.54°
Angle of View (O)64.20°~3.23°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4.8119.3(391.2ft)47.7(156.5ft)23.9(78.2ft)11.9(39.1ft)
1202475.0(8120.1ft)990.0(3248.0ft)495.0(1624.0ft)247.5(812.0ft)
Illuminator
IR RangeUp to 100m (328 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
ROISupport
Video StreamTriple streams
OSDUp to 8 OSDs
Privacy Mask24 areas, up to 4 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion detection, Audio detection, Tampering Alarm
Auto TrackingSupport
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio CompressionG.711U,G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
EZView
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 200°/s
Preset speed: 240°/s
Tilt Range–15° ~ 90° (auto reverse)
Tilt Speed0.1°/s ~ 120°/s
Preset speed: 200°/s
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Route Patrol16 patrols, up to 32 actions for each patrol
Recorded Patrol16 patrols, up to 128 actions for each patrol
Patrol Stay Time  15s~1800s
Preset Image FreezeSupport
Home PositionSupport
Interface
Audio I/O1/1
Alarm I/O2/1
Serial Port1 RS485
Built-in MicN/A
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC
Certification
EMCFCC Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
SafetyIEC 62368-1
EN 62368-1
UL 60950-1
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General

Power

DC12V(±25%,3A), PoE+(IEEE 802.3at)
Power consumption: MAX 21W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Ø166 x 295mm (Ø6.5” x 11.6”)
Weight3.05kg(6.72lb)
Working Environment-40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
Storage Environment-40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
Surge Protection6KV
Reset ButtonSupport
ProtectionIngression protection: IP67
Vandal resistant: IK10
