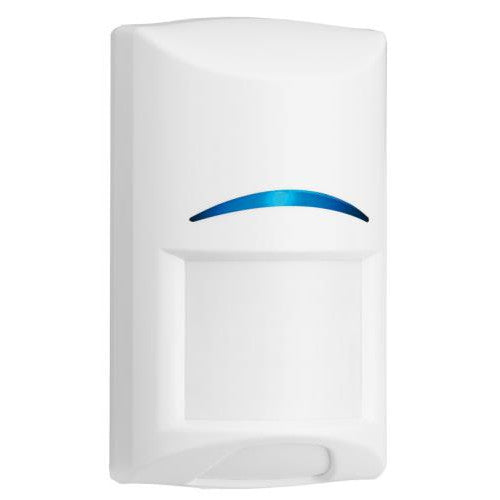

Gen2 Quad PIR Motion Detector, 12m (40ft) | Product No.: F.01U.364.871

  • Dynamic Temperature Compensation – superior catch performance in any environment
  • Wall to Wall Coverage – superior catch performance
  • Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance
  • Self-locking Enclosure with Integrated Bubble Level – reduce installation time
Current (alarm/standby):10 mA at 12 VDC
Voltage (operating):9 VDC to 15 VDC
Environment:Complies with EN50130-5 Class II
Relative Humidity:0 to 95%, non-condensing For UL Listed product installations, 0 to 85%, non-condensing
Temperature (operating):-30°C to +55°C (-20°F to +130°F) For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
Color:white
Dimensions:105 mm x 61 mm x 44  mm (4.2 in. x 2.4 in. x 1.7 in.)
Material:High-impact ABS plastic
Radio Frequency Interference (RFI) ImmunityNo alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.
Relay:Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper:Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit.
