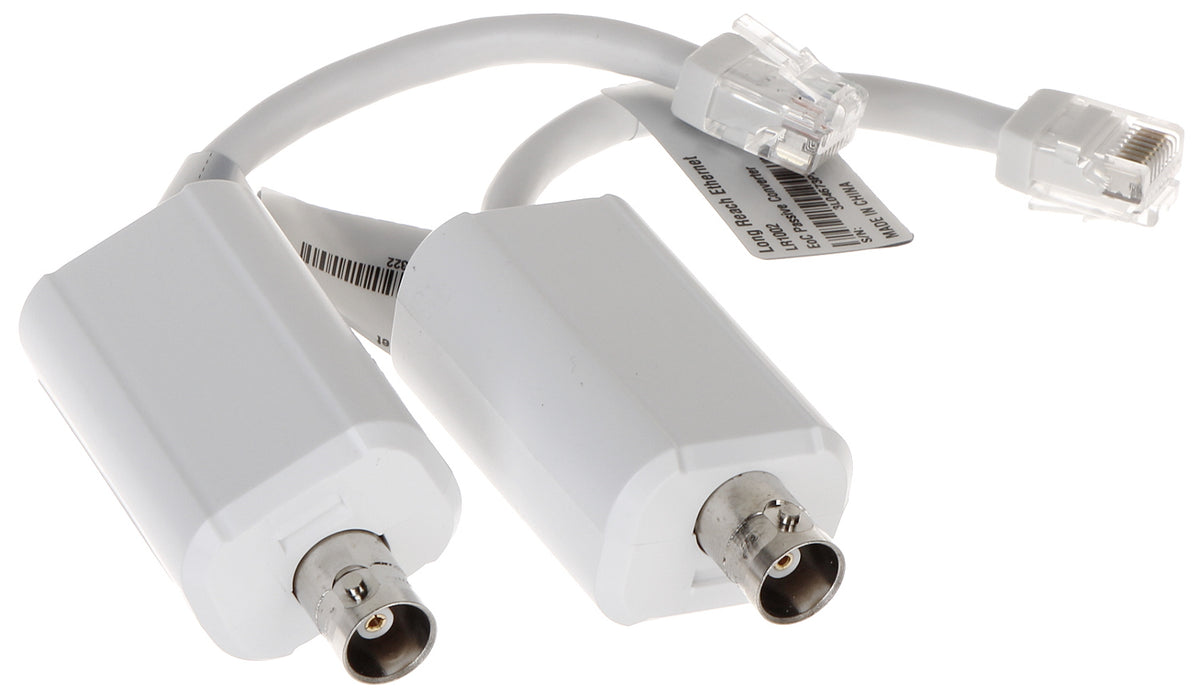

EoC Passive Converter

  • Supports IEEE802.3, IEEE802.3u standards
  • Port: 1*RJ45 10/100Mbps, 1*BNC
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable

Technical Specification

Model

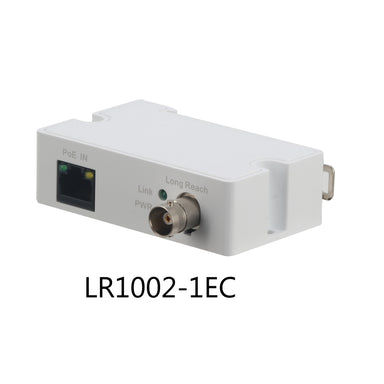

LR1002

Function Port

1*10/100 Mbps Base-TX

1*BNC

Power Consumption

<1W

Transmission Bandwidth

RG59 coaxial cable:

400m/100Mbps, 1000m/10Mbps

PoE Protocol

-

(Based on the power input from the ePoE switch)

Network Standard

IEEE802.3, IEEE802.3u

Lightning Protection

Common Mode 6KV

Differential Mode 2KV

Operating Temperature

-40°C-60°C

Operating Humidity

0%~95%

Weight

28.3g

Dimension (W×D×H)

56mm×27mm×21mm

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load Capacity (W)

Hi-PoE Max Load Capacity (W)

Network Operating Mode

100

100

25.5

50

IEEE/E100

200

100

25.5

30

E100

300

100

18

18

E100

400

100

15

15

E100

500

10

12

12

E10

800

10

6

6

E10

1000

10

5

5

E10

ePoE switch power supply voltage is 48V.

The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω.

100

100

25.5

52

IEEE/E100

200

100

25.5

48

E100

300

100

25.5

30

E100

400

100

20

23

E100

500

10

16

16

E10

800

10

10

10

E10

1000

10

8

8

E10

ePoE switch power supply voltage is 53V.

The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω.
