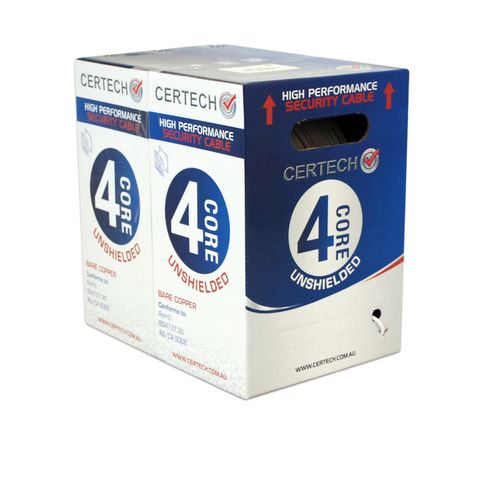

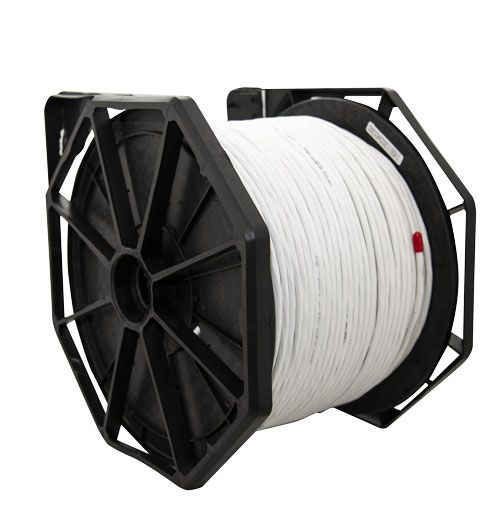

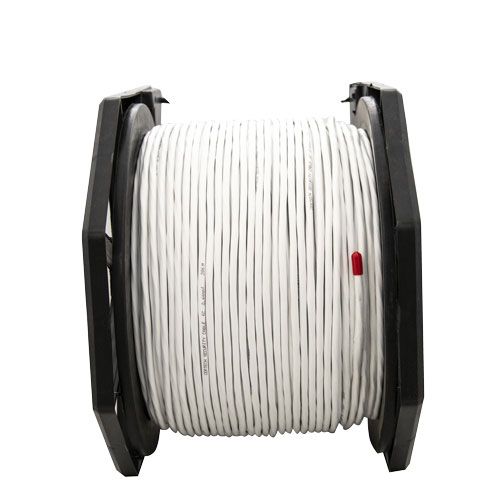

Certech 300M 14/020 4 Core Roller Box, Low Smoke Zero Halogen

  • For interconnect wiring, suitable for use in security & inturder alarm systems.
  • For use in low voltage/low current applications
  • Not for mains connection

Conductor

  • Material: Stranded annealed bare copper
  • Construction: 14/020mm
  • Nom. OD: 0.86mm
  • Nom. Cross Section Area: 0.44mm²
  • Max. DCR @ 20C: 44.8 ohm/km



Insulation

  • Nom. OD: 1.50mm
  • Nom. Wall Thickness: 0.32mm
  • Colour Code & Lay Up: Black/White/Red/Blue, 4 Cores Stranded



Sheath

  • Material: White LSZH Jacket
  • External OD: 4.75±0.20mm
  • Nom. Wall Thickness: 0.55±0.05mm



Other

  • Operating Temp. Range: -40 ~ 75°C
  • Packaging: 300m Reel-In-Box
  • Cable Weight: 10.5kg/300m
