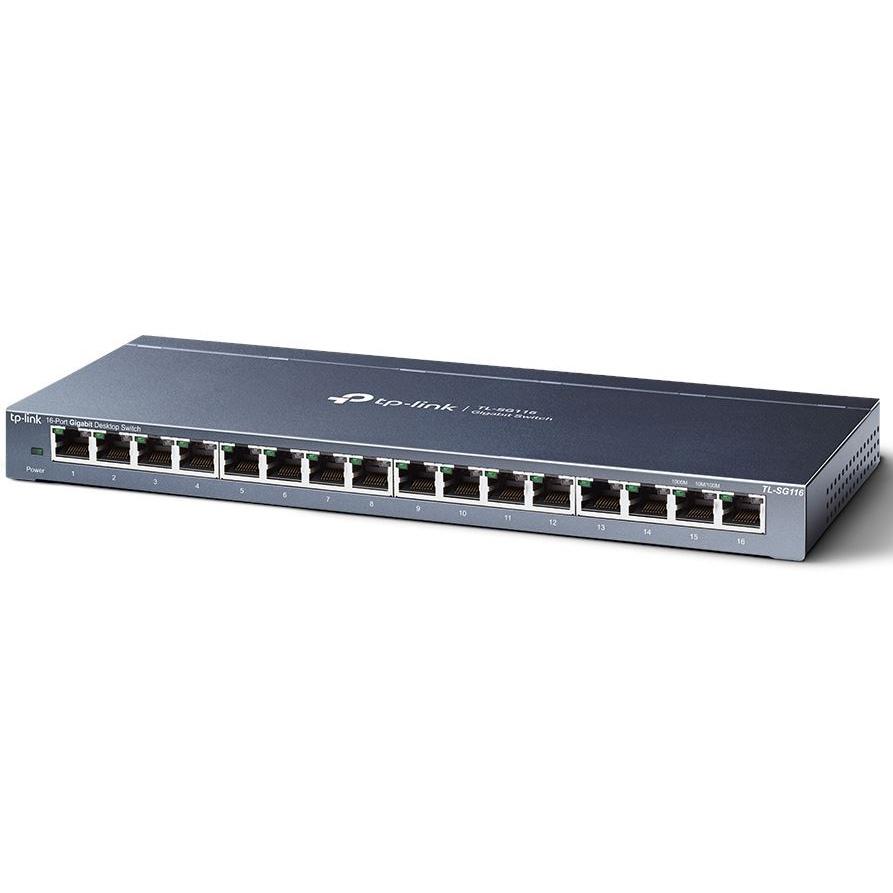

16-Port Gigabit Desktop Switch

  • 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, with no configuration needed
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 12VDC / 1.0A)
LED IndicatorSystem Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
Max Power Consumption10W(220V/50Hz)
Max Heat Dissipation34.12BTU/h
PERFORMANCE
Packet Forwarding Rate23.8Mpps
MAC Address Table8K
Packet Buffer Memory4.1Mb
Jumbo Frame10KB
SOFTWARE FEATURES
Advanced FeaturesGreen Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer MethodStore and Forward
OTHERS
CertificationCE, FCC ,RoHS
Package Contents16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
WarrantyLimited 5-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
