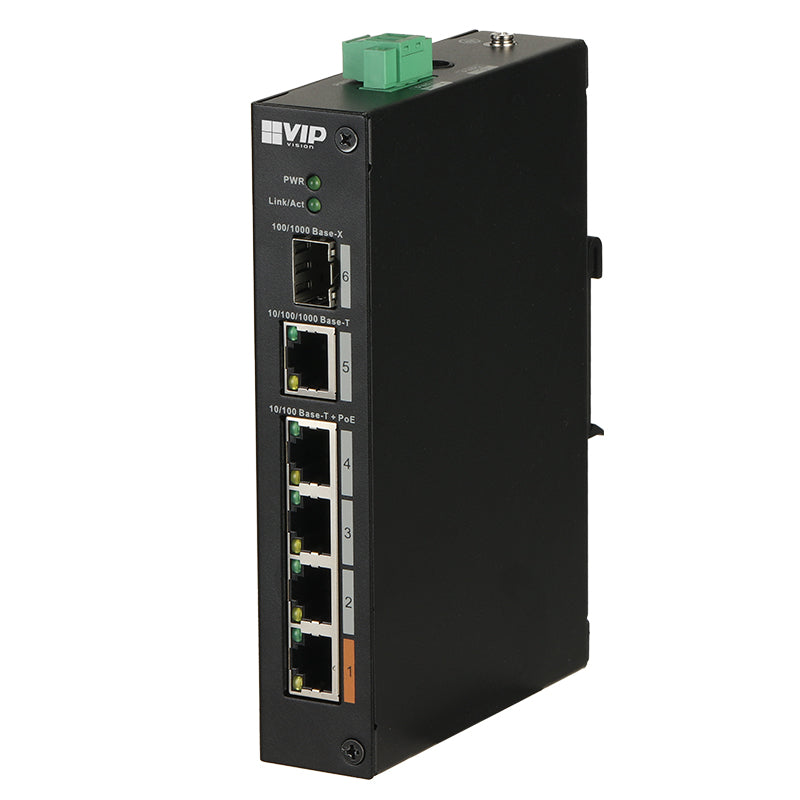

The VSPOE-SW4H is a DIN rail mountable, fast PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Product features:

• 3 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 60W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure

Switch Specification
Ports
4 ports
Speed
Fast 10/100
Device Ports
4 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
1 x 100/1000 Base-X / 1 x 10/100/1000 Base-T
Switching Capacity
6.8Gbps
Packet Forwarding Rate
3.57Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switch Power Load
Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)
Management
Switch Management
Unmanaged
MAC Address Capacity
8K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 6kV / Differential Mode: 4kV
Mounting Options
DIN rail
Operating Environment
-30°C~65°C / RH5%~95%
Weight
0.44kg
Dimensions
150 x 108 x 30mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
240 mm
Height
270 mm
Depth
80 mm
Weight
1.30 kg
